OEM Tin 80u" DP Socket Connector USB Jack SMT DIP Solder With PI Tape

Name: OEM Tin 80uquot DP Socket Connector USB Jack SMT DIP Solder With PI Tape
Brand: Jinze
Price: 1 USD

Buy cheap OEM Tin 80u" DP Socket Connector USB Jack SMT DIP Solder With PI Tape product

Brand Name : Jinze

Model Number : DP06E-LBA4V-RHA

Certification : SGS/ROHS

Place of Origin : China

MOQ : 1000pcs

Price : Negotiation

Payment Terms : T/T

Supply Ability : 80000pcs/ Day

Delivery Time : 15-25 Days

Packaging Details : Reel Packaging

Material : LCP UL 94 V-0 HF Black

Gender : Female

Application : Advertising Machine, Automotive Electronic, Smart Reader, Smart Watch, STB.

Number of Contacts : 20pcs

Current Rating : 500mA

Mounting Style : Solder

Factory Pack Quanity : 400pcs per Reel

OEM/ODM : Accepted

Contact Now

DisplayPort Connector with 10000 Cycles Durability SMT DIP Solder With PI Tape

Specifications

Housing	LCP UL94V-0 Black HF
Contact	C2680 T=0.20mm
Shield	C2680 T=0.40mm
Cover	LCP UL 94V-0 Black HF
Terminal Finish	Gold 15u" Plating on Contact Area
	Matte Tin 80u" plating on solder tail
	Under Nickel Plating 50u" Min Over All
Shell	Cu 100u"+ Ni 100u" Plated
Current Rating	0.5A Max
Voltage Rating	40V
Contact Resistance	40 mΩ Max
Insulation Resistance	Unmated 100mΩ Min. At 500 VDC
	Mated 10 mΩ Min. At 150 VDC
Dielectric Withstanding Voltage	500 V AC/1 Minute
Durabilty	10000 Cycles
Insertion Force	4.5Kgf Max
Withdrawal Force	1.0-4.0Kgf
Operation Temperature	-20°C~+85°C
Storage Temperature	-20°C~+65°C

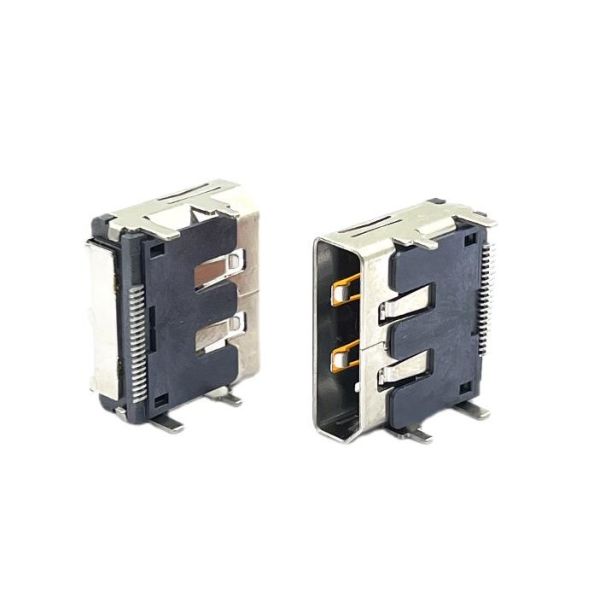

Images:

OEM Tin 80u" DP Socket Connector USB Jack SMT DIP Solder With PI Tape

Drawings:

OEM Tin 80u" DP Socket Connector USB Jack SMT DIP Solder With PI Tape

DP06E-LBA4V-RHA.pdf, if you need the Drawing, pls download it

Features and Benefits

• PCB space saving footprint
• D-shaped chamfered interface provides polarization
• Fully shielded against EMI and RFI emissions
• Detent locks and latch holes for secure mating connection
• PCB alignment pegs
• PCB solder pegs for in creased rigidity and retention to PCB

Product Application Information

These DisplayPort receptacle connectors form part of the DisplayPort interconnection system which is used for delivering high definition video of up to 10.8 Gbit/s and audio signals. Applications include games consoles, monitors, personal computers, projectors, set-top boxes, TV displays and work stations
